300 RIVET SETTING MACHINE
A power Operated Automatic Twin Feed Machine for setting two Semi-Tubular, Tubular or Bifurcated Rivets up to 16 mm (5/8") in length at one stroke.

The rivet centres are supplied fixed within the limits 14mm (9/16") to 89 mm (3.1/2"). This standard specification can be extended to increase the scope of the machine.
The maximum rivet gauge, which will depend on the type of rivet and the material from which it is made, is as follows:
STEEL
BRASS
COPPER
ALUM. & LIGHT
ALLOY
S.T.
Tub.
Bif.
S.T.
Tub.
Bif.
S.T
Tub.
Bif.
S.T
Tub.
Bif.
11
10
 9
1/8
9.1/2
 9 9 8 9 7 7 9
Other Data

A 1/4 h.p. maotor is fitted as standard

GUARDING:
Guards which have been developed in conjonction with the H.M. Factory Inspectorate are available for each machine

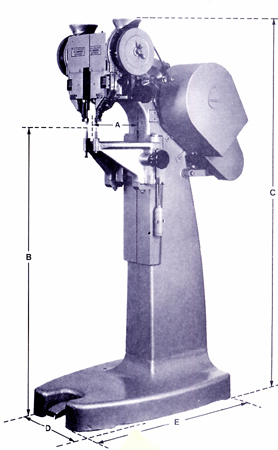

A
B
C
D
E
APPROX.
WEIGHT
LENGTH
OF
STROKE
254 mm
1143 mm
 1778 mm
533 mm
1041 mm
 344kg 51 mm
10" 45" 70" 21" 41" 760 lb. 2"
